山東快速成型技術通過與精密鑄造、機械加工等制造手段相結合，已經成為模型和零件制造的有效方法，在航空、汽車、電子、軍事裝備、建筑模型等領域得到了廣泛應用。下面就來講講快速成型技術在熔模精密鑄造中的應用內容吧。

Shandong rapid prototyping technology, combined with precision casting, machining and other manufacturing means, has become an effective method for model and part manufacturing, and has been widely used in aviation, automobile, electronics, military equipment, building models and other fields. Let's talk about the application of rapid prototyping technology in investment casting.

選擇性激光燒結技術

Selective laser sintering technology

選擇性激光燒結技術成型過程與零件的復雜程度無關，是真正的自由成型。SLS幾乎可以成型任意幾何外形的零件，對中空結構（hollowedareas）、槽中套槽（notcheswithinnotches）及懸臂結構（overhangs）等結構的零件成型特殊有效。

The forming process of selective laser sintering technology has nothing to do with the complexity of parts, and it is truly free forming. SLS can form parts with almost any geometric shape, and is particularly effective for forming parts with hollow structures, notches within notches and overhangs.

選擇性激光燒結通常采用塑料、金屬、陶瓷的粉末作為成型材料。其工藝過程是：先在工作臺上鋪上一層粉末，在計算機掌握下用激光束有選擇地進行燒結（零件的空心部分不燒結，仍為粉末材料），被燒結部分則固化在一起構成零件的實心部分。一層完成后再進行下一層，新一層與其上一層牢牢地?zé)Y(jié)在一起。全部燒結完成后，去除多余的粉末，便得到燒結成的零件。

Selective laser sintering usually uses plastic, metal and ceramic powders as molding materials. The technological process is as follows: first, a layer of powder is laid on the workbench, and then the laser beam is used to selectively sinter (the hollow part of the part is not sintered, but is still powder material) under the control of the computer. The sintered parts are solidified together to form the solid part of the part. After the completion of one layer, the next layer shall be carried out, and the new layer shall be firmly sintered with the previous layer. After all sintering is completed, the excess powder is removed to obtain the sintered parts.

選擇性激光燒結采用PSB粉料在熔模精密鑄造上的應用

Application of PSB powder in investment casting by selective laser sintering

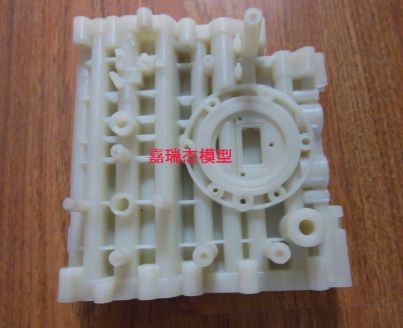

目前，熔模精密鑄造在生產結構復雜，用模具幾乎無法實現產品時通常采用快速成型制作其生產所用的蠟?zāi)！２捎眠x擇性激光燒結與熔模精密鑄造結合在一起解決生產難題的方法已經得到了很好的應用。即用PSB粉燒結成的零件用毛刷及其它專用工具將零件上的浮粉，終用壓縮空氣將殘余的粉末吹掉。

At present, when the production structure of investment casting is complex and the products can hardly be realized with the mold, the wax mold used in the production is usually made by rapid prototyping. The method of combining selective laser sintering with investment casting to solve production problems has been well applied. That is, the floating powder on the parts sintered with PSB powder is removed with a brush and other special tools, and the residual powder is finally blown off with compressed air.

說明：激光功率的大小影響成型零件的強度和變形，激光功率高，成型零件的強度高，但激光功率過高在燒結過程中會引起變形，一激光功率設定為12.5～15W（實際激光功率設置參數近似為總功率百分比，所以10～20W大致對應為20%～40%）。

Note: the size of laser power affects the strength and deformation of formed parts. High laser power has high strength, but too high laser power will cause deformation during sintering. The first laser power is set to 12.5-15w (the actual laser power setting parameter is approximately the percentage of total power, so 10-20w roughly corresponds to 20% - 40%).

快速成型技術在熔模精密鑄造中的應用相關內容就到這里了，如果您對此有什么疑惑或者說什么想法，都可以來我們網站http://www.xtgs.com.cn咨詢了解更多。

This is all about the application of rapid prototyping technology in investment casting. If you have any doubts or ideas about this, you can come to our website http://www.xtgs.com.cn Consult to learn more.
